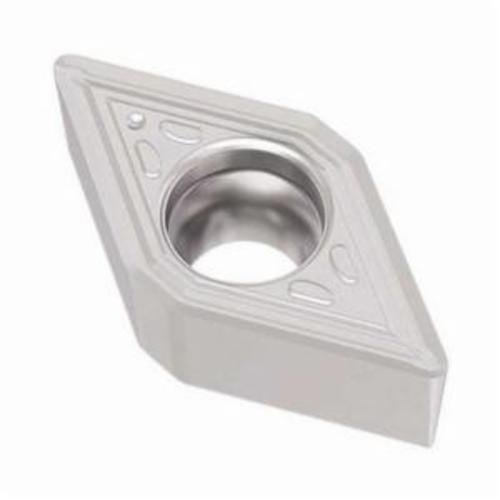

Seco 02960905 Turning Insert, ANSI Code: DCMT32.50.5-M3 TP2501, DCMT Insert, Material Grade: P, 11T302 Insert, Diamond Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, DCMT Insert, 11T302 Insert, Diamond Shape, 3.75 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 11 Seat, Negative/Positive Rake, M3 Chipbreaker, 0.2 mm Corner Radius, 4.5 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: DCMT32.50.5-M3 TP2501, ISO Code: DCMT11T302-M3 TP2501, 55 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DCMT32.50.5-M3 TP2501
Chipbreaker M3
Corner Radius 0.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 4.5 mm
Included Angle 55 deg
Inscribed Circle 9.5 mm
Insert Size 11T302
Insert Style DCMT
ISO Code DCMT11T302-M3 TP2501
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 11
Shape Diamond
Thickness 3.97 mm

Country of Origin: Sweden

Application:
Medium Applications
