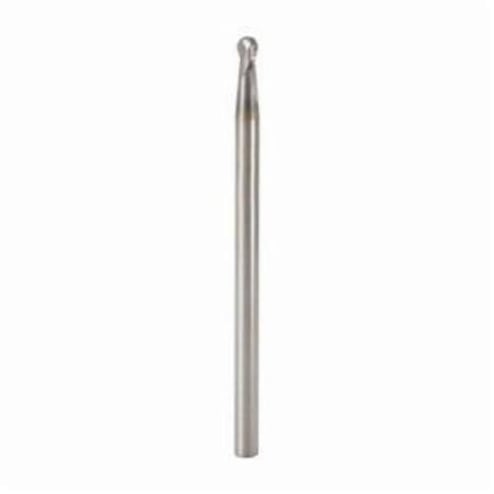

Seco JABRO® HSM/Tornado 19820 JH970 Ball End Single End Mill, 4 mm Dia Cutter, 6 mm Length of Cut, 2 Flutes, 6 mm Dia Shank, 80 mm OAL, Tribon/PVD Coated


Description

Seco JABRO® HSM/Tornado End Mill, Ball End Single End, Series: JH970, 4 mm Diameter Cutter, 80 mm Overall Length, 6 mm Length of Cut, 2 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Cylindrical Shank, ANSI Code: 970L040-TRIBON, ISO Code: 970L040-TRIBON, Solid Carbide, Tribon/PVD Coated

Seco® is offering you the Tornado program. Tornado is a complete range of solid carbide cutters espacially developed for high speed machining. Tornado is the result of continuous research into the best possible combination of solid carbide quality, cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 970L040-TRIBON
Cutter Diameter 4 mm
Cutting Direction Right Hand
Finish Tribon/PVD Coated
Flute Type Spiral
Helix Angle 30 deg
ISO Code 970L040-TRIBON
Length of Cut 6 mm
Material Solid Carbide
Number of Flutes 2
Overall Length 80 mm
Series JH970
Shank Diameter 6 mm
Shank Type Cylindrical
Type Ball End Single End

Country of Origin: Netherlands

Application:
Radial Ramping Applications

Features

  • JABRO®-HSM/Tornado - High speed machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Tribon is a high performance coating used in general machining and aerospace applications, it is commonly used on soft materials, stainless steel and super alloys
  • 90 deg cutting edge
  • 1.417 in L minimum clamping
  • 30 deg axial rake
  • 8 deg radial rake
  • 8 - 21.3 mm L reach
  • 3.7 mm Dia neck
  • G - Step Neck tool shape
  • 2 teeth across centre cut
