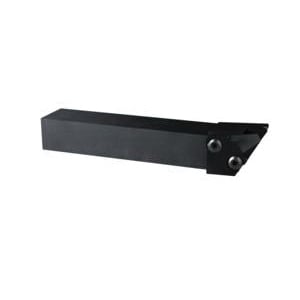

Seco 19426 Jetstream Tooling® Indexable Turning Tool Holder With Coolant Through Technology, ANSI Code: PDJNR3225P15JETL, PDJN Tool Holder, DN..1506.. Insert, Right Hand Cutting, 130 mm L x 25 mm W Square Shank, 93 deg Lead Angle, Negative Rake, 170 mm OA


Description

Seco Indexable Turning Tool Holder, Series: Jetstream Tooling®, PDJN Tool Holder, 170 mm Overall Length, Square Shank, 130 mm L x 25 mm W Shank, Insert Compatibility: DN..1506.., 6 Insert Seat, Right Hand Cutting, 12.7 mm Inscribed Circle, 32.2 mm Back of Bar to Cutting Edge, 93 deg Lead Angle, 42 mm Head Length, ANSI Code: PDJNR3225P15JETL, Negative Rake, Steel

Jetstream Tooling® toolholders deliver coolant effectively through the toolholder to the optimum position close to the cutting edge. This improves chip control by lifting the chip away from the rake face and reducing the heat load, enabling longer tool life and drastically increasing cutting data to be applied. A comprehensive range of insert types, shapes and sizes are available.

Specifications

ANSI Code PDJNR3225P15JETL
Back of Bar to Cutting Edge 32.2 mm
Cutting Direction Right Hand
Head Length 42 mm
Inscribed Circle 12.7 mm
Insert Compatibility DN..1506..
Insert Seat Size 6
Lead Angle 93 deg
Material Steel
Overall Length 170 mm
Rake Negative
Series Jetstream Tooling®
Shank Size 130 mm L x 25 mm W
Shank Type Square
Tool Holder Style PDJN

Country of Origin: India
