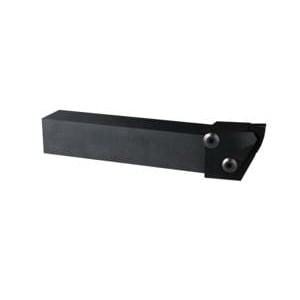

Seco 19420 Jetstream Tooling® Indexable Turning Tool Holder With Coolant Through Technology, ANSI Code: PWLNR2525M08JETL, PWLN Tool Holder, WNMG 432 Insert, Right Hand Cutting, 115 mm L x 25 mm W Square Shank, 95 deg Lead Angle, Negative Rake, 150 mm OAL


Description

Seco Indexable Turning Tool Holder, Series: Jetstream Tooling®, PWLN Tool Holder, 150 mm Overall Length, Square Shank, 115 mm L x 25 mm W Shank, Insert Compatibility: WNMG 432, Right Hand Cutting, 12.7 mm Inscribed Circle, 32.2 mm Back of Bar to Cutting Edge, 95 deg Lead Angle, 36 mm Head Length, ANSI Code: PWLNR2525M08JETL, Negative Rake, Steel

Jetstream Tooling® toolholders deliver coolant effectively through the toolholder to the optimum position close to the cutting edge. This improves chip control by lifting the chip away from the rake face and reducing the heat load, enabling longer tool life and drastically increasing cutting data to be applied. A comprehensive range of insert types, shapes and sizes are available.

Specifications

ANSI Code PWLNR2525M08JETL
Back of Bar to Cutting Edge 32.2 mm
Cutting Direction Right Hand
Head Length 36 mm
Inscribed Circle 12.7 mm
Insert Compatibility WNMG 432
Lead Angle 95 deg
Material Steel
Overall Length 150 mm
Rake Negative
Series Jetstream Tooling®
Shank Size 115 mm L x 25 mm W
Shank Type Square
Tool Holder Style PWLN

Country of Origin: India
