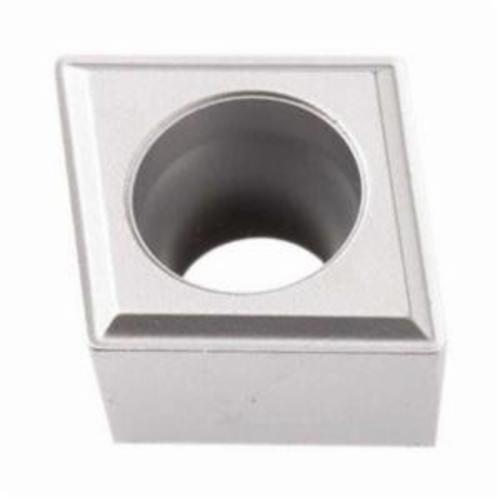

Seco 02960834 Turning Insert, ANSI Code: CCMT21.50.5-FF1 TP2501, CCMT Insert, Material Grade: P, 060202 Insert, Diamond Shape, 06 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, CCMT Insert, 060202 Insert, Diamond Shape, 2.5 mm Maximum Depth of Cut, 6.4 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Negative/Positive Rake, FF1 Chipbreaker, 0.2 mm Corner Radius, 2.9 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: CCMT21.50.5-FF1 TP2501, ISO Code: CCMT060202-FF1 TP2501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CCMT21.50.5-FF1 TP2501
Chipbreaker FF1
Corner Radius 0.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 2.9 mm
Included Angle 80 deg
Inscribed Circle 6.4 mm
Insert Size 060202
Insert Style CCMT
ISO Code CCMT060202-FF1 TP2501
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 2.5 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 06
Shape Diamond
Thickness 2.38 mm

Country of Origin: Sweden

Application:
Finishing Applications
