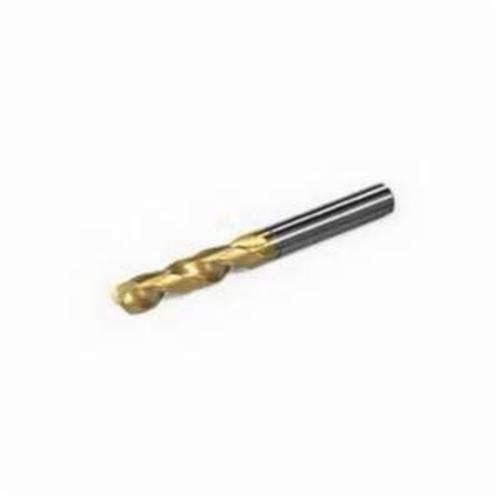

Seco Feedmax™ 18874 SD203 Shank Drill, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, Solid Carbide, PVD TiAlN+TiN Coated


Description

Seco Feedmax™ Shank Drill, Series: SD203, Metric, 3 mm Drill - Metric, 0.1181 in Drill - Decimal Inch, 66 mm Overall Length, 3XD Cutting Depth, 2 Flutes, Spiral Flute, 20 mm Flute Length, 6 mm Dia x 36 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Solid Carbide, PVD TiAlN+TiN Coated, Applicable Materials: Cast Iron, Non-Ferrous Materials and Plastics

Seco Feedmax™ is our latest generation of high performance solid carbide drills. They offer a unique combination of state-of-the-art carbide, coating and geometry technology.

Specifications

Applicable Materials Cast Iron, Non-Ferrous Materials and Plastics
Cutting Depth 3XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric
Drill Size - Decimal Inch 0.1181 in
Drill Size - Metric 3 mm
Finish PVD TiAlN+TiN Coated
Flute Length 20 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 66 mm
Point Angle 140 deg
Point Type Self-Centering
Series SD203
Shank Size 6 mm Dia x 36 mm L
Shank Type Cylindrical

Country of Origin: United States

Standards and Approvals: DIN 6537A

Application:
For hole making applications

Features

  • Solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool
  • Designed for high productivity and low cost per hole
  • The self-centering geometry provides high hole quality with no need for center drilling operations
  • A special TiAlN coating gives Seco Feedmax™ drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life
  • Drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation
  • A protective corner chamfer further enhances application security
