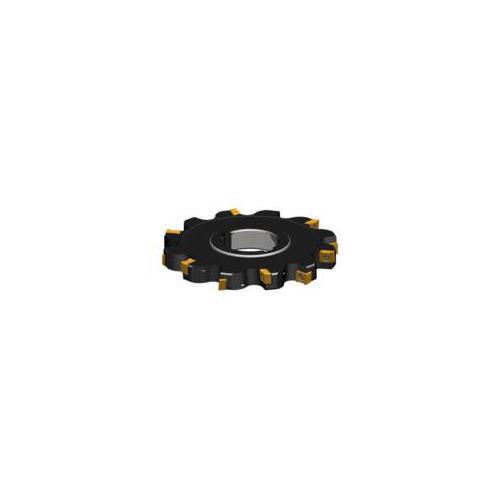

Seco 00018543 335.18 Milling Cutter, 6.24 in Dia Cutting, LNK 08 Insert, 1.56 in Dia Arbor, 1.976 in Max Depth of Cu


Description

Seco, 00018543, Milling Cutter, Series: 335.18, 6.24 in Diameter Cutting, LNK 08 Insert, Insert Compatibility: LNKT 080504PPN-E05/ LNKT 080504PPTN-M06/ LNKT 080504PPTN4-M06/ LNKT 080508PPN-E05/ LNKT 080508PPTN-M06/ LNKT 080508PPTN4-M06/ LNKT 080516PPN-E05/ LNKT 080516PPTN-M06/ LNKT 080520PPN-E05/ LNKT 080520PPTN-M06/ LNKT 080524PPN-E05/ LNKT 080524PPTN-M06, Arbor Shank, 1.56 in Arbor, 1.976 in Maximum Depth of Cut

The Disc milling cutter 335.18-160.1215.40-6N features an arbor hole shank type with a cutting diameter of 160 mm. With a cutting width ranging from 12 to 15 mm, the cutter provides a peripheral effective cutting edge count of 6. The connection bore diameter measures 40 mm, and the maximum cutting depth is 50.2 mm. The workpiece side connection is specified as LNK.0805.. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Arbor Hole Diameter 1.56 in
Connection Type Arbor
Cutting Diameter 6.24 in
Insert Compatibility LNKT 080504PPN-E05/ LNKT 080504PPTN-M06/ LNKT 080504PPTN4-M06/ LNKT 080508PPN-E05/ LNKT 080508PPTN-M06/ LNKT 080508PPTN4-M06/ LNKT 080516PPN-E05/ LNKT 080516PPTN-M06/ LNKT 080520PPN-E05/ LNKT 080520PPTN-M06/ LNKT 080524PPN-E05/ LNKT 080524PPTN-M06
Insert Style LNK 08
Maximum Depth of Cut 1.976 in
Series 335.18
Shank Type Arbor Hole

Country of Origin: India

Application:
For tackles any challenges brought by disc milling applications

Features

  • Developed with extensive research to ensure they meet the needs to today's materials and machining processes, tackles any challenges brought by disc milling applications
