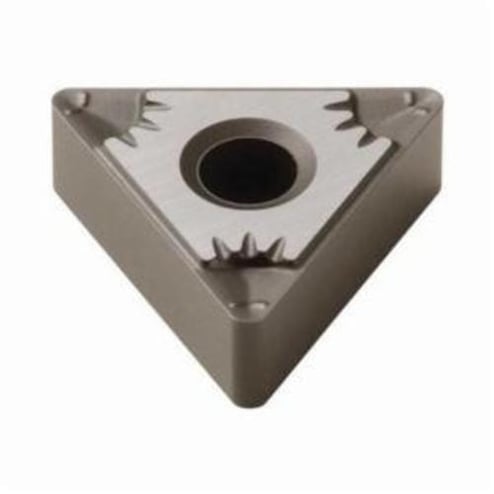

Seco 18205 Turning Insert, ANSI Code: TNMG332-MF5 TH1500, TNMG Insert, Material Grade: H, 160408 Insert, Triangular Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Hardened Steel, Carbide, Manufacturer's Grade: TH1500


Description

Seco Turning Insert, TNMG Insert, 160408 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative Rake, MF5 Chipbreaker, 0.8 mm Corner Radius, 3.81 mm Hole Dia, Manufacturer's Grade: TH1500, ANSI Code: TNMG332-MF5 TH1500, ISO Code: TNMG160408-MF5 TH1500, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: H, For Use On: Hardened Steel

Specifications

ANSI Code TNMG332-MF5 TH1500
Chipbreaker MF5
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Hardened Steel
Hole Diameter 3.81 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 160408
Insert Style TNMG
ISO Code TNMG160408-MF5 TH1500
Length 16.5 mm
Manufacturer's Grade TH1500
Material Carbide
Material Grade H
Maximum Depth of Cut 3.75 mm
Rake Negative
Relief Angle 0 deg
Seat Size 16
Shape Triangular
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
