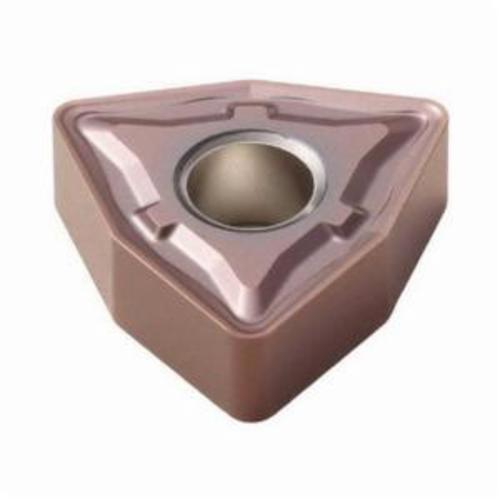

Seco 02825874 Turning Insert, ANSI Code: WNMG433-M5 TH1000, WNMG Insert, Material Grade: H, S, 080412 Insert, Trigon Shape, 08 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Hardened Steels, Super Alloys and Titanium, Carbide


Description

Seco Turning Insert, WNMG Insert, 080412 Insert, Trigon Shape, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 08 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TH1000, ANSI Code: WNMG433-M5 TH1000, ISO Code: WNMG080412-M5 TH1000, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, PVD-TiAlSiN Nanolaminate Coated, Material Grade: H, S, For Use On: Hardened Steels, Super Alloys and Titanium

Specifications

ANSI Code WNMG433-M5 TH1000
Chipbreaker M5
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish PVD-TiAlSiN Nanolaminate Coated
For Use On Hardened Steels, Super Alloys and Titanium
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 080412
Insert Style WNMG
ISO Code WNMG080412-M5 TH1000
Manufacturer's Grade TH1000
Material Carbide
Material Grade H, S
Maximum Depth of Cut 5 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 08
Shape Trigon
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium Applications
