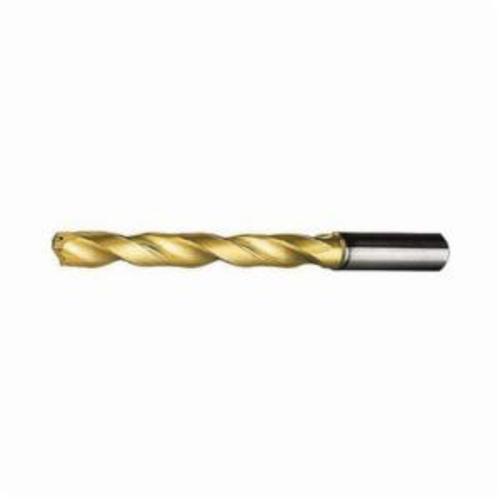

Seco Feedmax™ 18109 SD207A Single Diameter Jobber Length Drill Bit, 15.5 mm Drill - Metric, 0.6102 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, TiAlN+TiN Coated


Description

Seco Feedmax™ Jobber Length Drill Bit, Single Diameter, Series: SD207A, Metric, 15.5 mm Drill - Metric, 0.6102 in Drill - Decimal Inch, 171 mm Overall Length, 7XD Cutting Depth, 2 Flutes, Spiral Flute, 121 mm Flute Length, 16 mm Dia x 48 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Yes Through Coolant, Solid Carbide, TiAlN+TiN Coated, Applicable Materials: Cast Iron, Plastic and Non-Ferrous Metals

Seco Feedmax™ solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool. The self-centering geometry provides high hole quality with no need for center drilling operations. A special TiAlN coating gives Seco Feedmax™ drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life. Seco Feedmax™ drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation. A protective corner chamfer further enhances application security. Seco Feedmax™ includes a wide range of drills for different workpiece materials and applications including: M geometry for superalloys, T geometry for titanium alloys and aluminum, and N geometry for aluminum and non-ferrous materials.

Specifications

Applicable Materials Cast Iron, Plastic and Non-Ferrous Metals
Cutting Depth 7XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric
Drill Size - Decimal Inch 0.6102 in
Drill Size - Metric 15.5 mm
Finish TiAlN+TiN Coated
Flute Length 121 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 171 mm
Point Angle 140 deg
Point Type Self-Centering
Series SD207A
Shank Size 16 mm Dia x 48 mm L
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Type Single Diameter

Country of Origin: United States

Standards and Approvals: DIN 6537A

Application:
For cutting and machining

Features

  • Seco Feedmax™ offers a unique combination of state-of-the-art carbide, coating and geometry technology
  • Seco Feedmax™ is designed for high productivity and low cost per hole with high feeds up to 0,70 mm/rev and high cutting speeds up to 220 m/min
  • With excellent centering capabilities - high hole quality is achieved with no need for center drilling operations
  • Thanks to the modern coating with high hot hardness, the strong cutting edges with protective corner chamfers, high strength carbide rod, excellent chip evacuation capabilities and a superb cutting edge quality - a long and predictable tool life is achieved
  • Seco Feedmax™ has a wide range of optimized geometries for different materials and applications, to obtain a good quality hole at the lowest cost
