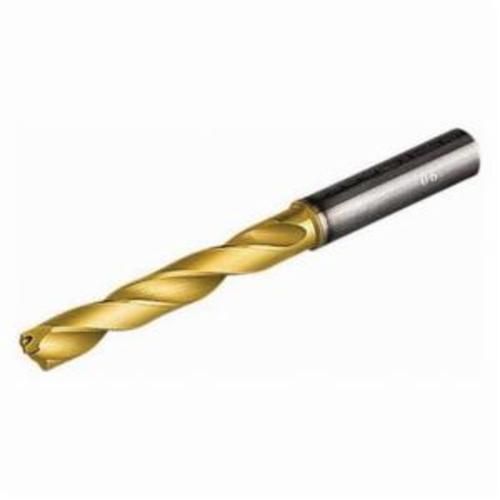

Seco Feedmax™ 18012 SD205A Single Diameter Jobber Length Drill Bit, 18 mm Drill - Metric, 0.7087 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, PVD-TiN+TiAlN Coated


Description

Seco Feedmax™ Jobber Length Drill Bit, Single Diameter, Series: SD205A, Metric, 18 mm Drill - Metric, 0.7087 in Drill - Decimal Inch, 143 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 93 mm Flute Length, 18 mm Dia x 48 mm L Shank, Cylindrical Shank, 140 deg Point, Self-Centering Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Yes Through Coolant, Solid Carbide, PVD-TiN+TiAlN Coated, Applicable Materials: Cast Iron, Non-Ferrous Metals and Plastic

Seco Feedmax™ solid carbide drills combine state-of-the-art carbide, coating and geometry technology into a unique high performance tool. The self-centering geometry provides high hole quality with no need for center drilling operations. A special TiAlN coating gives Seco Feedmax™ drills high hot hardness that, combined with a strong cutting edge, ensures long and predictable tool life. Seco Feedmax™ drills feature high strength carbide rods to minimize the risk of breakage and a low friction coating (TiAlN) for excellent chip evacuation. A protective corner chamfer further enhances application security.

Specifications

Applicable Materials Cast Iron, Non-Ferrous Metals and Plastic
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric
Drill Size - Decimal Inch 0.7087 in
Drill Size - Metric 18 mm
Finish PVD-TiN+TiAlN Coated
Flute Length 93 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 143 mm
Point Angle 140 deg
Point Type Self-Centering
Series SD205A
Shank Size 18 mm Dia x 48 mm L
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Type Single Diameter

Country of Origin: United States

Standards and Approvals: DIN 6537A

Application:
For cutting and machining

Features

  • High feeds and cutting speeds
  • Close tolerance holes
