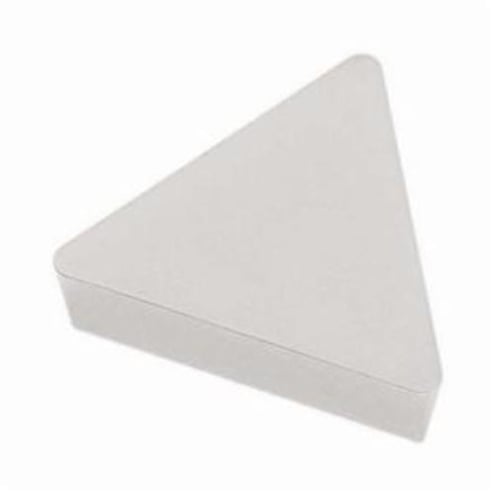

Seco 02960704 Turning Insert, ANSI Code: TPU431 TP2501, TPUN Insert, Material Grade: P, 220404 Insert, Triangular Shape, 22 Seat, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, TPUN Insert, 220404 Insert, Triangular, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 22 mm Length, 22 Seat, 0.4 mm Corner Radius, Manufacturer's Grade: TP2501, ANSI Code: TPU431 TP2501, ISO Code: TPUN220404 TP2501, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TPU431 TP2501
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Included Angle 60 deg
Inscribed Circle 12.7 mm
Insert Size 220404
Insert Style TPUN
ISO Code TPUN220404 TP2501
Length 22 mm
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Relief Angle 11 deg
Seat Size 22
Shape Triangular
Thickness 4.76 mm

Country of Origin: Sweden

Application:
For finishing, medium-rough machining and rough machining
