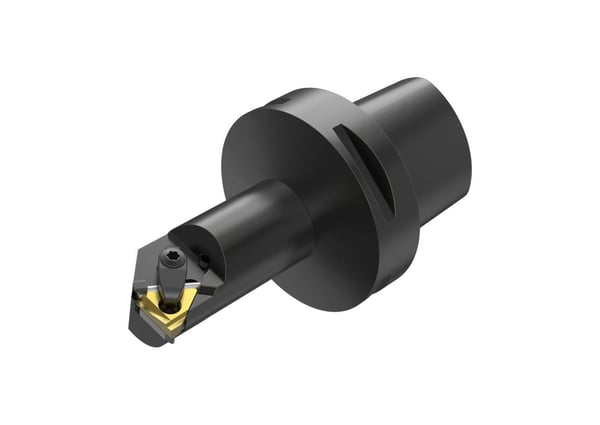

Seco 02823807 CNL Indexable Threading Toolholder, Internal Thread, Left Hand of Holder, Insert Compatibility: 27NL


Description

Seco, 02823807, Indexable Threading Toolholder, Series: CNL, Internal Thread, Left Hand of Holder, 4.134 in Overall Length, Insert Compatibility: 27NL, 3.295 in Head Length, 1.02 in Center to Cutting Edge, Clamp Insert Holding Method, Through Coolant (Yes/No): Yes

The Turning thread holder C5-CNL-26105-27HD features an internal version designed for left-hand cutting. With a functional length of 105 mm, it supports machine workpiece connections ranging from C5 to 27. The tool includes internal coolant supply to aid in cutting operations. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Center to Cutting Edge 1.02 in
Hand of Holder Left Hand
Head Length 3.295 in
Insert Compatibility 27NL
Insert Holding Method Clamp
Overall Length 4.134 in
Series CNL
Thread Type Internal
Through Coolant (Yes/No) Yes

Country of Origin: Germany

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
