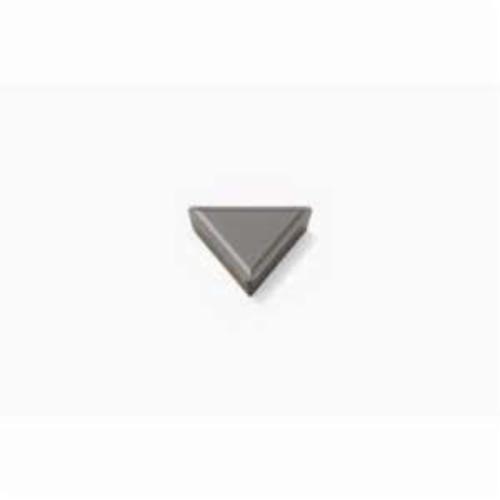

Seco 02960695 Turning Insert, ANSI Code: TPMR221-F1 TP2501, TPMR Insert, Material Grade: P, 110304 Insert, Triangular Shape, 11 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, TPMR Insert, 110304 Insert, Triangular, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 3.18 mm Thickness, 11 mm Length, 11 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 2.26 mm Hole Dia, Manufacturer's Grade: TP2501, ANSI Code: TPMR221-F1 TP2501, ISO Code: TPMR110304-F1 TP2501, 60 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

The Turning insert TPMR110304-F1 TP2501 features a positive type geometry with a clearance angle major of 11 degrees. It is made from Carbide CVD grade TP2501. The insert has three cutting edges and a corner radius of 0.4 mm. With a cutting edge effective length of 10.6 mm, the insert is designed with a neutral hand orientation. It is primarily intended for steel workpiece materials and is partially applicable for stainless steel and cast irons. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code TPMR221-F1 TP2501
Chipbreaker F1
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 2.26 mm
Included Angle 60 deg
Inscribed Circle 6.35 mm
Insert Size 110304
Insert Style TPMR
ISO Code TPMR110304-F1 TP2501
Length 11 mm
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 2.75 mm
Rake Positive
Relief Angle 11 deg
Seat Size 11
Shape Triangular
Thickness 3.18 mm

Country of Origin: India

Application:
Finishing Applications
