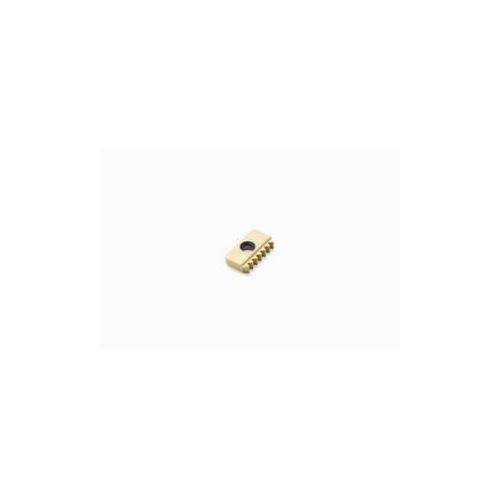

Seco 02445709 13XM Threaded Mill Insert, 13XMS Insert, Carbide, Manufacturer's Grade: CP500, Micrograin Material Grade


Description

Seco, 02445709, Mill Insert, Threaded, Series: 13XM, 13XMS Insert, 0.097 in Thickness, 0.507 in Length, 0.15 mm Corner Radius, Manufacturer's Grade: CP500, Both Hand of Insert, Carbide, Material Grade: Micrograin

Specifications

Corner Radius 0.15 mm
Hand of Insert Both
Insert Style 13XMS
Length 0.507 in
Manufacturer's Grade CP500
Material Carbide
Material Grade Micrograin
Series 13XM
Thickness 0.097 in
Type Threaded

Country of Origin: India

Standards and Approvals: PROP65

Application:
Especially suitable in intermittent cuts

Features

  • Versatile, cost-effective process tools for anyone facing a variety of threads, parts and workpiece materials on the same machine
  • Multi-tooth indexable insert cutters use a double sided multi-tooth insert usable above Ø14 mm for both internal and external threads
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
