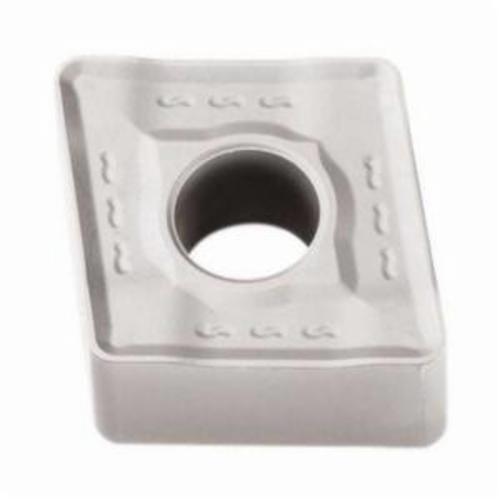

Seco 02960660 Turning Insert, ANSI Code: CNMM544-RR6 TP1501, CNMM Insert, Material Grade: P, 160616 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501


Description

Seco Turning Insert, CNMM Insert, 160616 Insert, Diamond, 8 mm Maximum Depth of Cut, 15.88 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, Negative Rake, RR6 Chipbreaker, 1.6 mm Corner Radius, 6.35 mm Hole Dia, Manufacturer's Grade: TP1501, ANSI Code: CNMM544-RR6 TP1501, ISO Code: CNMM160616-RR6 TP1501, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CNMM544-RR6 TP1501
Chipbreaker RR6
Corner Radius 1.6 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 6.35 mm
Included Angle 80 deg
Inscribed Circle 15.88 mm
Insert Size 160616
Insert Style CNMM
ISO Code CNMM160616-RR6 TP1501
Manufacturer's Grade TP1501
Material Carbide
Material Grade P
Maximum Depth of Cut 8 mm
Rake Negative
Relief Angle 0 deg
Seat Size 16
Shape Diamond
Thickness 6.35 mm

Country of Origin: Sweden

Application:
Roughing Applications
