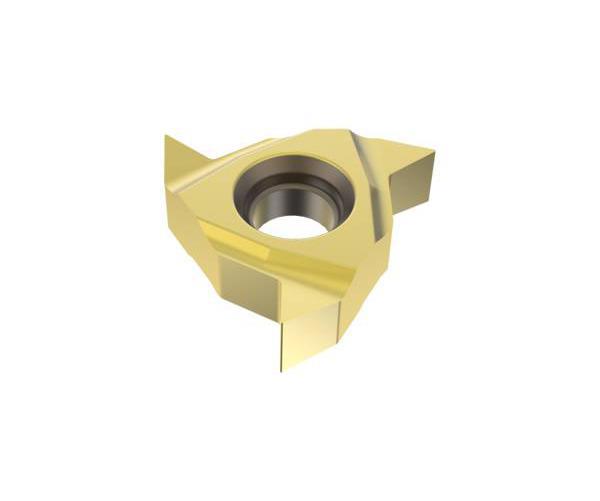

Seco 02444842 16ER Laydown Threading Insert, 16ER Insert, 8 TPI, External Thread, 55 deg Partial Profile Thread, 0.118 in Pitch, Right Cutting, Manufacturer's Grade: CP500


Description

Seco, 02444842, Threading Insert, Laydown, Series: 16ER, 16ER Insert, External Thread, 55 deg Partial Profile Thread Standard, 0.118 in Pitch, 8 TPI Threads per Inch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.003 in Corner Radius, 55 deg Included Angle, Manufacturer's Grade: CP500, Right Cutting Direction, Carbide

The Thread turning insert 16ERAG55-A CP500 features a partial profile 55 external thread form with a minimum of 48 threads per inch. It is made from a carbide PVD grade CP500. The insert has one tooth and three cutting edges. This insert is designed primarily for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Corner Radius 0.003 in
Cutting Direction Right
Included Angle 55 deg
Inscribed Circle 0.375 in
Insert Style 16ER
Length 0.65 in
Manufacturer's Grade CP500
Material Carbide
Pitch 0.118 in
Series 16ER
Thickness 0.137 in
Thread Standard 55 deg Partial Profile
Thread Type External
Threads per Inch 8 TPI
Type Laydown

Country of Origin: Sweden

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
