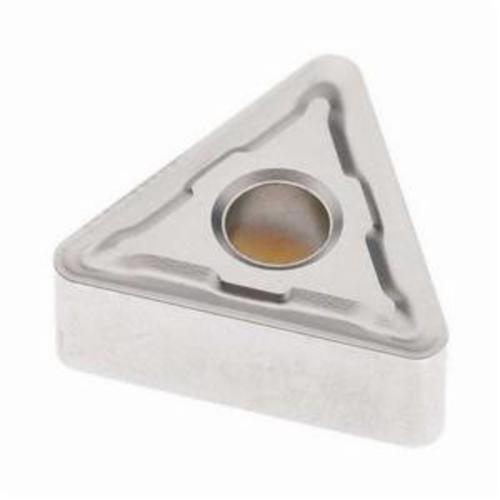

Seco 02960575 Turning Insert, ANSI Code: TNMG333-M5 TP1501, TNMG Insert, Material Grade: P, 160412 Insert, Triangular Shape, 16 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501


Description

Seco Turning Insert, TNMG Insert, 160412 Insert, Triangular Shape, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 4.76 mm Thickness, 16.5 mm Length, 16 Seat, Negative/Positive Rake, M5 Chipbreaker, 1.2 mm Corner Radius, 3.81 mm Diameter Hole, Manufacturer's Grade: TP1501, ANSI Code: TNMG333-M5 TP1501, ISO Code: TNMG160412-M5 TP1501, 60 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TNMG333-M5 TP1501
Chipbreaker M5
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 3.81 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 160412
Insert Style TNMG
ISO Code TNMG160412-M5 TP1501
Length 16.5 mm
Manufacturer's Grade TP1501
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 16
Shape Triangular
Thickness 4.76 mm

Country of Origin: India

Application:
Medium Applications
