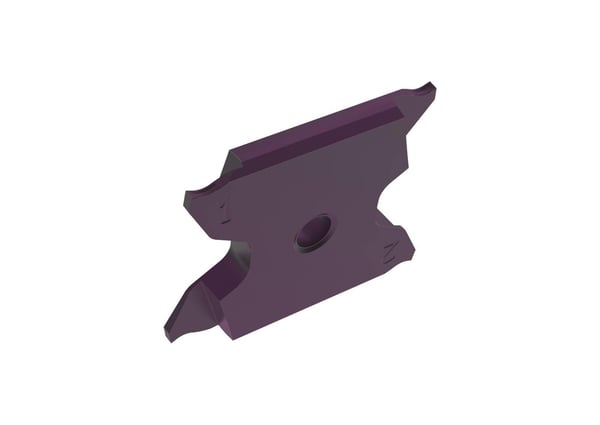

Seco 02823010 Grooving Insert, X4GK Insert, 2503010 Insert, Left Hand Cutting, 0.8 in H x 0.059 in W Cutting, Manufacturer's Grade: CP600, Fine-grained Material Grade


Description

Seco, 02823010, Grooving Insert, X4GK Insert, 2503010 Insert, 0.059 in Cutting Width, 0.256 in Maximum Depth of Cut, 0.8 in Cutting Height, MC Chipbreaker, 0.004 in Corner Radius, 0.803 in Thickness, 0.11 in Width, 0.748 in Length, Manufacturer's Grade: CP600, Left Hand Cutting Direction, Carbide, Material Grade: Fine-grained

Specifications

Chipbreaker MC
Corner Radius 0.004 in
Cutting Direction Left Hand
Cutting Height 0.8 in
Cutting Width 0.059 in
Insert Size 2503010
Insert Style X4GK
Length 0.748 in
Manufacturer's Grade CP600
Material Carbide
Material Grade Fine-grained
Maximum Depth of Cut 0.256 in
Thickness 0.803 in
Width 0.11 in

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • Optimized for parting-off and grooving primarily small parts
  • Very tough micrograin grade intended for stainless steels and steels applicable but generally applicable when ever high edge toughness required e.g. more difficult interrupted cuts
