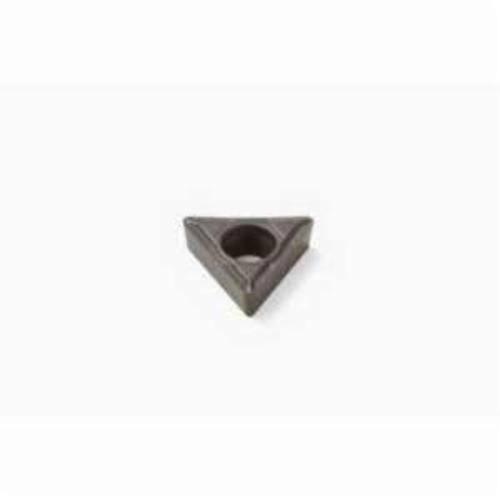

Seco 02960410 High Feed Wiper Turning Insert, ANSI Code: TCMX32.52W-F1 TP1501, TCMX Insert, Material Grade: P, 16T308 Insert, Triangular Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501


Description

Seco Turning Insert, High Feed Wiper, TCMX Insert, 16T308 Insert, Triangular, 3.75 mm Maximum Depth of Cut, 9.52 mm Inscribed Circle, 3.97 mm Thickness, 16.5 mm Length, 16 Seat, Positive Rake, W-F1 Chipbreaker, 0.8 mm Corner Radius, 4.5 mm Hole Dia, Manufacturer's Grade: TP1501, ANSI Code: TCMX32.52W-F1 TP1501, ISO Code: TCMX16T308W-F1 TP1501, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TCMX32.52W-F1 TP1501
Chipbreaker W-F1
Corner Radius 0.8 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 4.5 mm
Included Angle 60 deg
Inscribed Circle 9.52 mm
Insert Size 16T308
Insert Style TCMX
ISO Code TCMX16T308W-F1 TP1501
Length 16.5 mm
Manufacturer's Grade TP1501
Material Carbide
Material Grade P
Maximum Depth of Cut 3.75 mm
Rake Positive
Relief Angle 7 deg
Seat Size 16
Shape Triangular
Thickness 3.97 mm
Type High Feed Wiper

Country of Origin: Sweden

Application:
Finishing Applications
