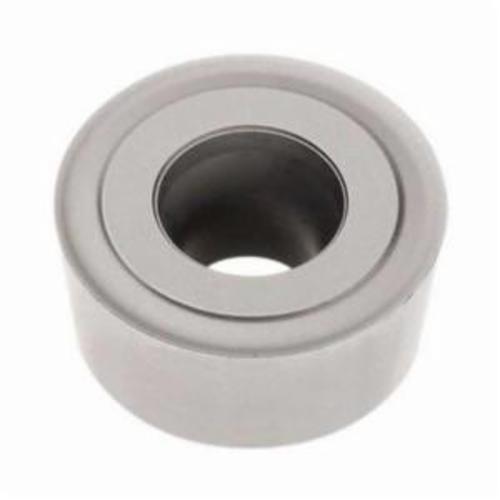

Seco 02960394 Turning Insert, ANSI Code: RCMT1606M0-F1 TP2501, RCMT Insert, Material Grade: P, 1606M0 Insert, Round Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, RCMT Insert, 1606M0 Insert, Round, 6.5 mm Maximum Depth of Cut, 16 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, Positive Rake, F1 Chipbreaker, 5.6 mm Hole Dia, Manufacturer's Grade: TP2501, ANSI Code: RCMT1606M0-F1 TP2501, ISO Code: RCMT1606M0-F1 TP2501, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code RCMT1606M0-F1 TP2501
Chipbreaker F1
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.6 mm
Inscribed Circle 16 mm
Insert Size 1606M0
Insert Style RCMT
ISO Code RCMT1606M0-F1 TP2501
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 6.5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 16
Shape Round
Thickness 6.35 mm

Country of Origin: Sweden

Application:
Finishing Applications
