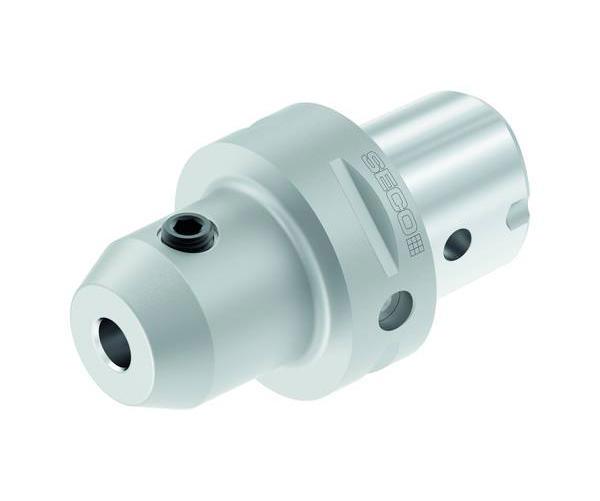

Seco 75039975 Capto Side Lock Holder, 0.312 in Dia Hole, Modular Connection Shank, 1.092 in Dia Nose, 2.165 in Projection


Description

Seco, 75039975, Side Lock Holder, Series: Capto, 0.312 in Diameter Hole, Modular Connection Shank, 1.092 in Diameter Nose, 2.165 in Projection, 3.627 in Overall Length, 1.092 in Overall Diameter

Specifications

Hole Diameter 0.312 in
Nose Diameter 1.092 in
Overall Diameter 1.092 in
Overall Length 3.627 in
Projection 2.165 in
Series Capto
Shank Type Modular Connection

Country of Origin: Germany

Application:
Suited for heavy machining operations

Features

  • Uses side locking screws to secure the tool shank against the bore of the toolholder and offer anti-pull-out protection makes the holders very well suited for heavy machining operations
