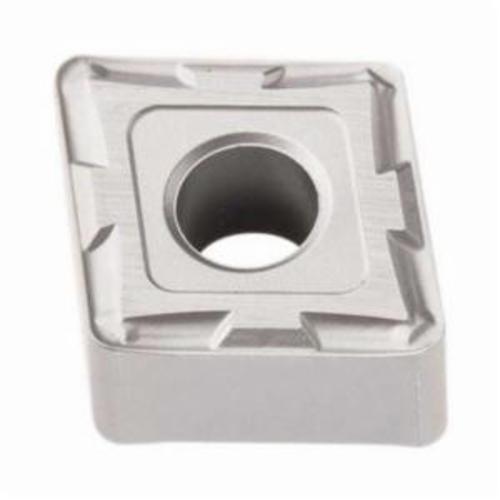

Seco 02960061 Turning Insert, ANSI Code: CNMG433-MF2 TP0501, CNMG Insert, Material Grade: P, 120412 Insert, Diamond Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP0501


Description

Seco Turning Insert, CNMG Insert, 120412 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative/Positive Rake, MF2 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP0501, ANSI Code: CNMG433-MF2 TP0501, ISO Code: CNMG120412-MF2 TP0501, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CNMG433-MF2 TP0501
Chipbreaker MF2
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 80 deg
Inscribed Circle 12.7 mm
Insert Size 120412
Insert Style CNMG
ISO Code CNMG120412-MF2 TP0501
Manufacturer's Grade TP0501
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 12
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium and Finishing
