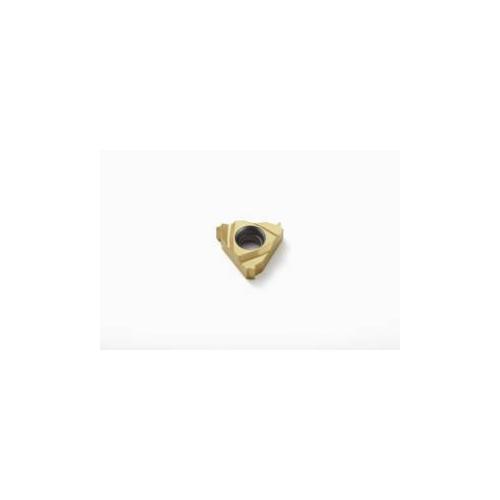

Seco 00015564 09NR Laydown Threading Insert, 09NR Insert, 13 TPI, Internal Thread, UN Thread, Right Cutting, Manufacturer's Grade: CP500, Micrograin Material Grade


Description

Seco, 00015564, Threading Insert, Laydown, Series: 09NR, 09NR Insert, Internal Thread, UN Thread Standard, 13 TPI Threads per Inch, 0.219 in Inscribed Circle, 0.095 in Thickness, 0.378 in Length, 0.006 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Cutting Direction, Carbide, Material Grade: Micrograin

The Thread turning insert 09NR13UN CP500 features a UN internal thread form type with a minimum of 13 threads per inch. It is made from a carbide PVD grade CP500. The insert has one tooth and three cutting edges. This insert is designed for use with steel, stainless steel, cast irons, superalloys, and titanium. It is also partially applicable for non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Corner Radius 0.006 in
Cutting Direction Right
Included Angle 60 deg
Inscribed Circle 0.219 in
Insert Style 09NR
Length 0.378 in
Manufacturer's Grade CP500
Material Carbide
Material Grade Micrograin
Series 09NR
Thickness 0.095 in
Thread Standard UN
Thread Type Internal
Threads per Inch 13 TPI
Type Laydown

Country of Origin: India

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
