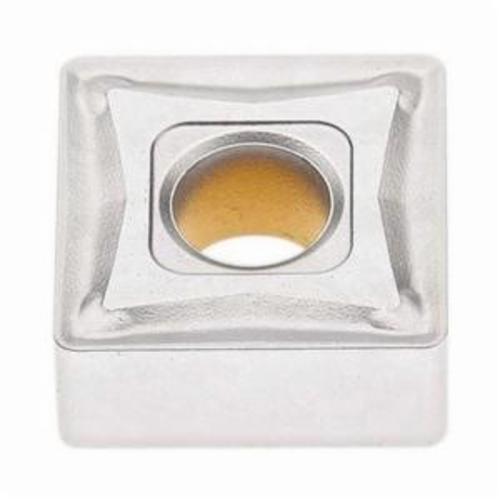

Seco 02959971 Turning Insert, ANSI Code: SNMG431-M3 TP2501, SNMG Insert, Material Grade: P, 120404 Insert, Squared Shape, 12 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, SNMG Insert, 120404 Insert, Squared Shape, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative/Positive Rake, M3 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: SNMG431-M3 TP2501, ISO Code: SNMG120404-M3 TP2501, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code SNMG431-M3 TP2501
Chipbreaker M3
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 90 deg
Inscribed Circle 12.7 mm
Insert Size 120404
Insert Style SNMG
ISO Code SNMG120404-M3 TP2501
Length 12.7 mm
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 5 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 12
Shape Squared
Thickness 4.76 mm
Width 12.7 mm

Country of Origin: Sweden

Application:
Medium Applications
