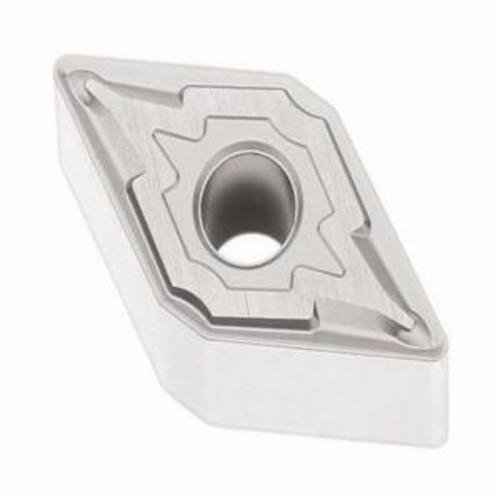

Seco 02959936 Turning Insert, ANSI Code: DNMG431-M3 TP1501, DNMG Insert, Material Grade: P, 150404 Insert, Diamond Shape, 15 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP1501


Description

Seco Turning Insert, DNMG Insert, 150404 Insert, Diamond Shape, 5.25 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 15 Seat, Negative/Positive Rake, M3 Chipbreaker, 0.4 mm Corner Radius, 5.15 mm Diameter Hole, Manufacturer's Grade: TP1501, ANSI Code: DNMG431-M3 TP1501, ISO Code: DNMG150404-M3 TP1501, 55 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code DNMG431-M3 TP1501
Chipbreaker M3
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 5.15 mm
Included Angle 55 deg
Inscribed Circle 12.7 mm
Insert Size 150404
Insert Style DNMG
ISO Code DNMG150404-M3 TP1501
Manufacturer's Grade TP1501
Material Carbide
Material Grade P
Maximum Depth of Cut 5.25 mm
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 15
Shape Diamond
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Medium Applications
