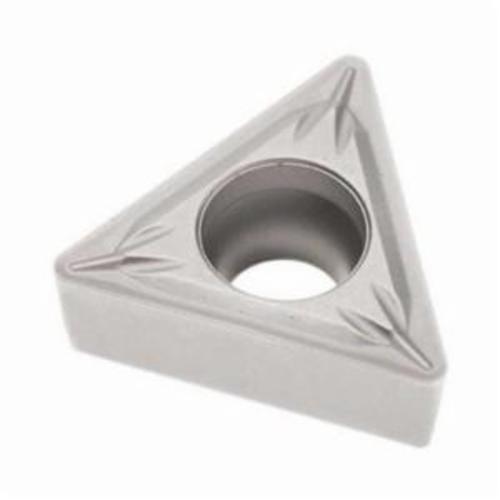

Seco 02956320 Turning Insert, ANSI Code: TCMT21.51-MF2 TP2501, TCMT Insert, Material Grade: P, 110204 Insert, Triangular Shape, 11 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, TCMT Insert, 110204 Insert, Triangular Shape, 2.75 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 11 mm Length, 11 Seat, Negative/Positive Rake, MF2 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Diameter Hole, Manufacturer's Grade: TP2501, ANSI Code: TCMT21.51-MF2 TP2501, ISO Code: TCMT110204-MF2 TP2501, 60 deg Included Angle, 7 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code TCMT21.51-MF2 TP2501
Chipbreaker MF2
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 2.9 mm
Included Angle 60 deg
Inscribed Circle 6.35 mm
Insert Size 110204
Insert Style TCMT
ISO Code TCMT110204-MF2 TP2501
Length 11 mm
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 2.75 mm
Rake Negative/Positive
Relief Angle 7 deg
Seat Size 11
Shape Triangular
Thickness 2.38 mm

Country of Origin: Sweden

Application:
Medium and Finishing
