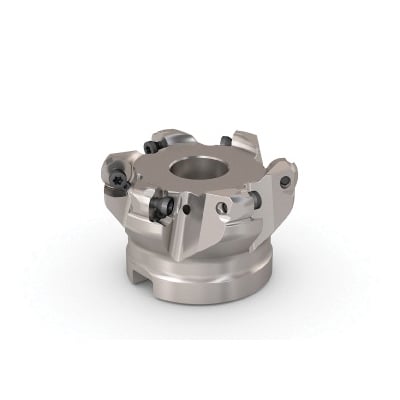

Seco 02949622 Single Sided Insert Indexable Copy Mill With Through Coolant Supply, ANSI Code: R220.29I-0063-06.6A, R220.29 Toolholder


Description

Seco Indexable Copy Mill, Single Sided Insert, 63 mm Cutting Dia, 40 mm Overall Length, 6 mm Maximum Depth of Cut, 6 Inserts, Insert Compatibility: RP..1204, 47 mm Shank Dia, Arbor Shank, Right Hand Cutting, ANSI Code: R220.29I-0063-06.6A, ISO Code: R220.29I-0063-06.6A, R220.29 Toolholder

Specifications

ANSI Code R220.29I-0063-06.6A
Cutting Diameter 63 mm
Cutting Direction Right Hand
Insert Compatibility RP..1204
ISO Code R220.29I-0063-06.6A
Maximum Depth of Cut 6 mm
Number of Inserts 6
Overall Length 40 mm
Shank Diameter 47 mm
Shank Type Arbor
Toolholder Type R220.29
Type Single Sided Insert

Country of Origin: France

Application:
For general copy milling applications

Features

  • Our comprehensive range of round insert cutters, R217/220.29, is ideal for semi-finishing and roughing in all copy milling applications and materials
