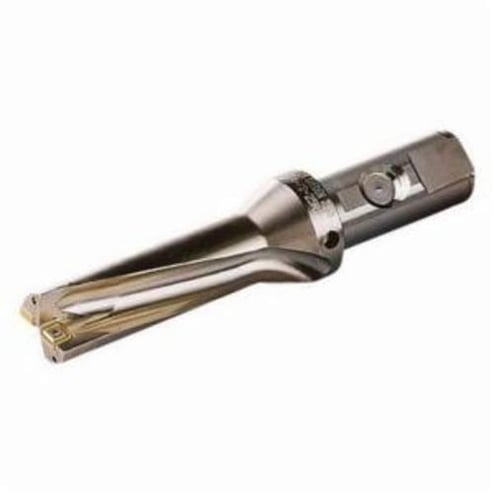

Seco 12420 Perfomax™ SD503 Indexable Insert Drill, 59 mm Drill, 59 mm Modular Connection, 40 mm Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 275 mm OAL, 177 mm D Max Drill


Description

Seco Indexable Insert Drill, Series: Perfomax™ SD503, 59 mm Drill, 40 mm Shank Diameter, 68 mm Shank Length, Weldon Flat/Whistle Notch Shank, 59 mm Modular Connection, SPGX/SCGX Insert, 177 mm Maximum Drill Depth, 275 mm Overall Length, 59 mm Diameter, 3XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: SPGX1904-C1 Center, SCGX150512.. Peripheral, 182 mm Flute Length, Yes Through Coolant

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 59 mm
Drill Depth by Diameter Ratio 3XD
Drill Size 59 mm
Flute Length 182 mm
Insert Compatibility SPGX1904-C1 Center, SCGX150512.. Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 177 mm
Modular Connection Size 59 mm
Number of Drill Inserts 2
Overall Length 275 mm
Series Perfomax™ SD503
Shank Diameter 40 mm
Shank Length 68 mm
Shank Type Weldon Flat/Whistle Notch
Through Coolant (Yes/No) Yes

Country of Origin: Sweden

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
