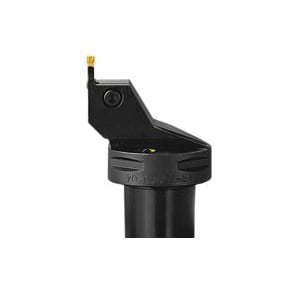

Seco 00012340 Seco-Capto™ External Multi-Directional Modular Turning Unit Head, C6 System, Left Hand Cutting, 18 mm Max Depth of Cut, 6 mm Max Width of Cut, LCGN/LCMF/LCMR Insert, 65 mm L Head/Projection, Insert Compatibility: LC..1606..


Description

Seco Modular Turning Unit Head, External Multi-Directional, Series: Protostar® AH602551, 65 mm Head Length/Projection, System Size: C6, 18 mm Maximum Depth of Cut, 6 mm Maximum Width of Cut, LCGN/LCMF/LCMR Insert, Insert Compatibility: LC..1606.., Left Hand Cutting, 45 mm Center to Cutting Edge, Secoloc™ Clamp Insert Holding Method

The Seco MDT (multi-directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting-off and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the toolholder for superb stability. The relatively long insert also increases stability.

Specifications

Center to Cutting Edge 45 mm
Cutting Direction Left Hand
Head Length/Projection 65 mm
Insert Compatibility LC..1606..
Insert Holding Method Secoloc™ Clamp
Insert Style LCGN/LCMF/LCMR
Maximum Depth of Cut 18 mm
Maximum Width of Cut 6 mm
Series Seco-Capto™
System Size C6
Type External Multi-Directional

Includes: TCEI0815 Clamp Screw, 6SMS795 Clamp Key and CN7 Coolant Nozzle

Country of Origin: United Kingdom

Application:
Grooving, Profiling, Turning, Parting-Off and Threading
