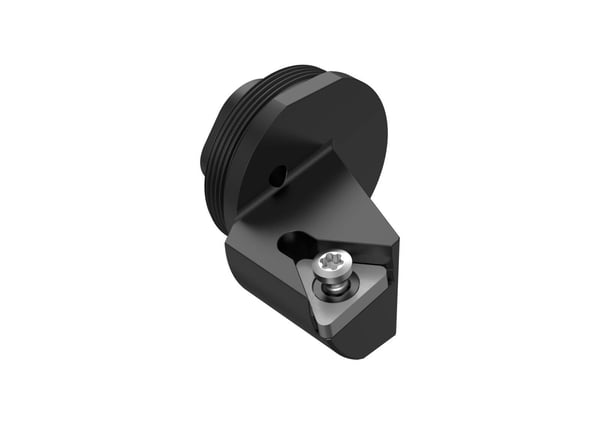

Seco 02809510 Steadyline® Modular Turning/Profiling Cutting Head, GL40 System, 32 mm L Head/Projection, Left Hand Cutting, Insert Compatibility: TC..16T3.., Internal


Description

Seco Modular Turning/Profiling Cutting Head, Series: Steadyline®, System Size: GL40, 32 mm Head Length/Projection, TCGT/TCGX/TCMT/TCMW/TCMX Insert, Insert Compatibility: TC..16T3.., Left Hand Cutting Direction, 27 mm Center to Cutting Edge, Screw Insert Holding Method, Internal

Modular GL heads for Steadyline® anti-vibration tooling are easily exchangeable toolholder heads with the accurate and reliable GL interface. GL turning heads are offered for problem free long overhang internal turning accommodating a comprehensive range of insert types, shapes and sizes for respective bar diameters.

Specifications

Center to Cutting Edge 27 mm
Cutting Direction Left Hand
Head Length/Projection 32 mm
Insert Compatibility TC..16T3..
Insert Holding Method Screw
Insert Style TCGT/TCGX/TCMT/TCMW/TCMX
Internal or External Internal
Series Steadyline®
System Size GL40

Includes: Insert Key, Insert Screw, Insert Shim, Key (T-Handle) and Shim Screw

Country of Origin: India
