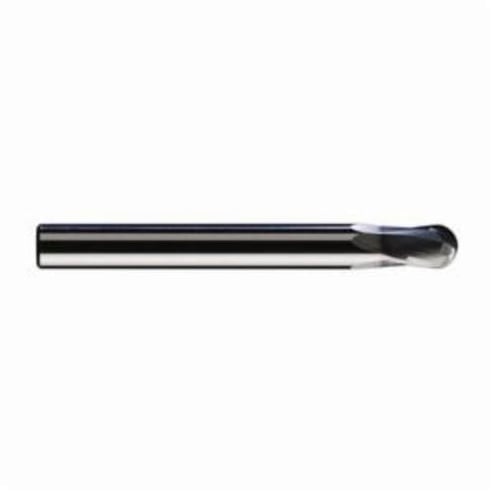

Seco JABRO® HSM/Tornado 10345 JH111 Ball End Center Cutting Single End Mill, 12 mm Dia Cutter, 12 mm Length of Cut, 2 Flutes, 12 mm Dia Shank, 125 mm OAL, MEGA-64/PVD Coated


Description

Seco JABRO® HSM/Tornado End Mill, Ball End Center Cutting Single End, Series: JH111, 12 mm Diameter Cutter, 125 mm Overall Length, 12 mm Length of Cut, 2 Flutes, Spiral Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 17 deg Helix Angle, Cylindrical Shank, ANSI Code: 111L120-MEGA-64, ISO Code: 111L120-MEGA-64, Solid Carbide, MEGA-64/PVD Coated

Seco® is offering you the Tornado program. Tornado is a complete range of solid carbide cutters espacially developed for high speed machining. Tornado is the result of continuous research into the best possible combination of solid carbide quality, cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 111L120-MEGA-64
Cutter Diameter 12 mm
Cutting Direction Right Hand
Finish MEGA-64/PVD Coated
Flute Type Spiral
Helix Angle 17 deg
ISO Code 111L120-MEGA-64
Length of Cut 12 mm
Material Solid Carbide
Number of Flutes 2
Overall Length 125 mm
Series JH111
Shank Diameter 12 mm
Shank Type Cylindrical
Type Ball End Center Cutting Single End

Country of Origin: Netherlands

Application:
Radial Ramping Applications

Features

  • JABRO®-HSM/Tornado - High speed machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • MEGA-64 is harder than MEGA-T and provides a higher metal removal rate, it is commonly used on hardened steels
  • 90 deg cutting edge
  • 0.236 in corner radius
  • 1.771 in L minimum clamping
  • 17 deg axial rake
  • 0 deg radial rake
  • D - Cylindrical tool shape
  • 2 teeth across centre cut
