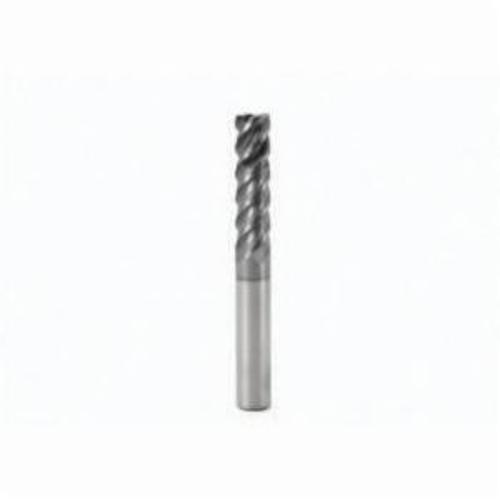

Seco JABRO® Solid2 02810479 Solid2 JS554 Single End Universal End Mill, 10 mm Dia Cutter, 0.1 mm Corner Radius, 40 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 85 mm OAL, SIRA/PVD Coated


Description

Seco JABRO® Solid2 End Mill, Single End Universal, Series: Solid2 JS554, 10 mm Cutter Dia, 0.1 mm Corner Radius, 85 mm Overall Length, 40 mm Length of Cut, 4 Flutes, Right Spiral Flute, 10 mm Shank Dia, Right Hand Cutting, 48 deg Helix Angle, Cylindrical Shank, ANSI Code: JS554100D3C.0Z4C-SIRA, ISO Code: JS554100D3C.0Z4C-SIRA, Solid Carbide, SIRA/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS554100D3C.0Z4C-SIRA
Corner Radius 0.1 mm
Cutter Diameter 10 mm
Cutting Direction Right Hand
Finish SIRA/PVD Coated
Flute Type Right Spiral
Helix Angle 48 deg
ISO Code JS554100D3C.0Z4C-SIRA
Length of Cut 40 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 85 mm
Series Solid2 JS554
Shank Diameter 10 mm
Shank Type Cylindrical
Type Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial and Ramping
