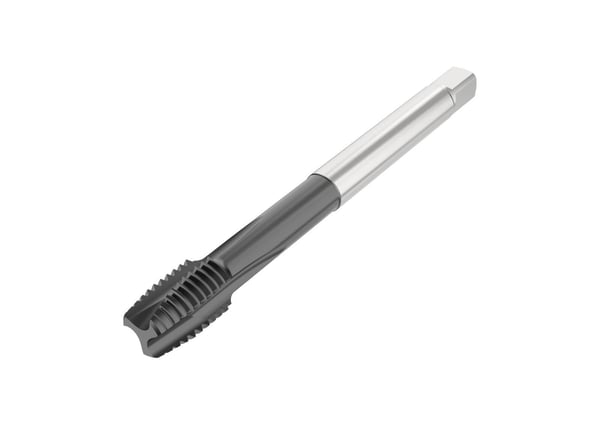

Seco 10139051 T34 0 deg Helix for Through-Hole Threading Flute Tap, Right Hand Cutting, 1/2-13 Thread, Modified Bottoming Chamfer, (3) Flutes, HL Coated, HSS-E-PM


Description

Seco, 10139051, Flute Tap, 0 deg Helix for Through-Hole Threading, Series: T34, Measurement System: Metric, UNC Thread Standard, 1/2-13 Thread, Modified Bottoming Chamfer, 3 Flutes, HSS-E-PM, HL Coated, Class of Fit: 2BX, Right Hand Cutting Direction, 18 mm Thread Length, 110 mm Overall Length, 9 mm Shank Diameter, 27 mm Shank Length, Non-Ferrous Metal/Super Alloy/Stainless Steel/Cast Iron/Steel Material Application

Specifications

Chamfer Type Modified Bottoming
Class of Fit 2BX
Cutting Direction Right Hand
Finish/Coating HL Coated
Material HSS-E-PM
Material Application Non-Ferrous Metal/Super Alloy/Stainless Steel/Cast Iron/Steel
Measurement System Metric
Number of Flutes 3
Overall Length 110 mm
Series T34
Shank Diameter 9 mm
Shank Length 27 mm
Thread Length 18 mm
Thread Size 1/2-13
Thread Standard UNC
Through Coolant (Yes/No) No
Type 0 deg Helix for Through-Hole Threading

Standards and Approvals: DIN376
