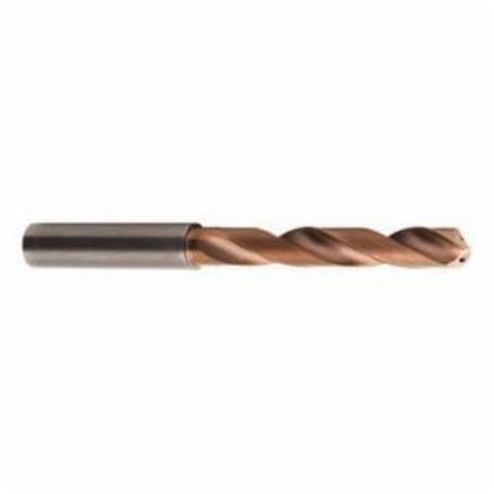

Seco Niagara Cutter N09276 ND1105A Universal Universal Drill, 11.7 mm Drill - Metric, 0.4606 in Drill - Decimal Inch, 140 deg Point, Solid Carbide, AlCrN Coated


Description

Seco Niagara Cutter Universal Drill, Universal, Series: ND1105A, Metric, 11.7 mm Drill - Metric, 0.4606 in Drill - Decimal Inch, 118 mm Overall Length, 5XD Cutting Depth, 2 Flutes, Spiral Flute, 71 mm Flute Length, 12 mm Dia x 45 mm L Shank, Cylindrical Shank, 140 deg Point, 4-Facet Point, Right Hand Cutting Direction, Solid Carbide Cutting Edge, Yes Through Coolant, Solid Carbide, AlCrN Coated, Applicable Materials: Steel, Stainless Steel and Cast Iron

Niagara universal solid carbide drills feature advanced coating technology and optimized geometries for specialized applications that focus on hole quality, high-volume production and achieving the lowest cost per hole. The new universal drill line adds to the Niagara Cutter family by bringing versatility and reduced inventory costs to low and medium batch production.

Specifications

Applicable Materials Steel, Stainless Steel and Cast Iron
Cutting Depth 5XD
Cutting Direction Right Hand
Cutting Edge Material Solid Carbide
Drill Diameter Measurement System Metric
Drill Size - Decimal Inch 0.4606 in
Drill Size - Metric 11.7 mm
Finish AlCrN Coated
Flute Length 71 mm
Flute Type Spiral
Material Solid Carbide
Number of Flutes 2
Overall Length 118 mm
Point Angle 140 deg
Point Type 4-Facet
Series ND1105A
Shank Size 12 mm Dia x 45 mm L
Shank Type Cylindrical
Through Coolant (Yes/No) Yes
Type Universal

Country of Origin: China

Standards and Approvals: DIN 6537A

Application:
For cutting data and holemaking application

Features

  • Niagara universal drills offer performance and value for holemaking applications across all industry segments
  • The line features a multi-purpose, 4-facet point geometry that provides excellent centering capability, maintains an IT8 / 9 hole tolerance and is easy to regrind
  • These drills also feature a polished AlCrN coating that o ers high abrasion resistance, toughness and good chip evacuation
  • Rigid multi-purpose geometry for predictable tool life
  • Application security and high capacity utilization
  • Versatility and reduced inventory cost
  • Incorporates a multi-purpose, 4-facet point geometry
