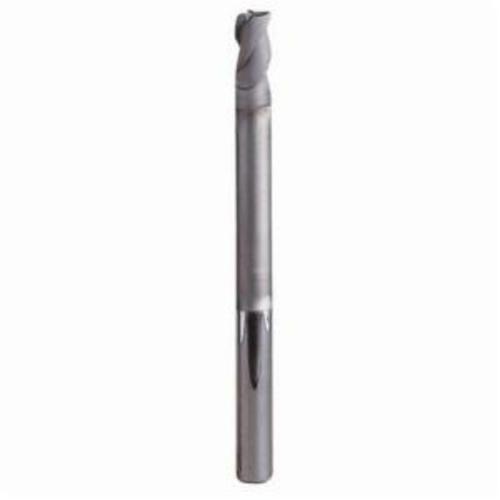

Seco JABRO® Diamond 08388 Diamond JD630 Center Cutting Single End Mill, 5 mm Dia Cutter, 0.3 mm Corner Radius, 6 mm Length of Cut, 3 Flutes, 5 mm Dia Shank, 50 mm OAL, Diamond/CVD Coated


Description

Seco JABRO® Diamond End Mill, Center Cutting Single End, Series: Diamond JD630, 5 mm Cutter Dia, 0.3 mm Corner Radius, 50 mm Overall Length, 6 mm Length of Cut, 3 Flutes, Right Spiral Flute, 5 mm Shank Dia, Right Hand Cutting, 40 deg Helix Angle, Cylindrical Shank, ANSI Code: 630V050R030-DIAMOND, ISO Code: 630V050R030-DIAMOND, Solid Carbide, Diamond/CVD Coated

The Diamond line offers a wide range of geometries specially designed for graphite machining and covers diameters between 0.2 to 12 mm. The combination of hard metal and diamond coating was developed by Jabro Tools in such way that perfect adhesion of the coating is guaranteed.

Specifications

ANSI Code 630V050R030-DIAMOND
Corner Radius 0.3 mm
Cutter Diameter 5 mm
Cutting Direction Right Hand
Finish Diamond/CVD Coated
Flute Type Right Spiral
Helix Angle 40 deg
ISO Code 630V050R030-DIAMOND
Length of Cut 6 mm
Material Solid Carbide
Number of Flutes 3
Overall Length 50 mm
Series Diamond JD630
Shank Diameter 5 mm
Shank Type Cylindrical
Type Center Cutting Single End

Country of Origin: Netherlands

Application:
Radial, Ramping, Plunging and Drilling
