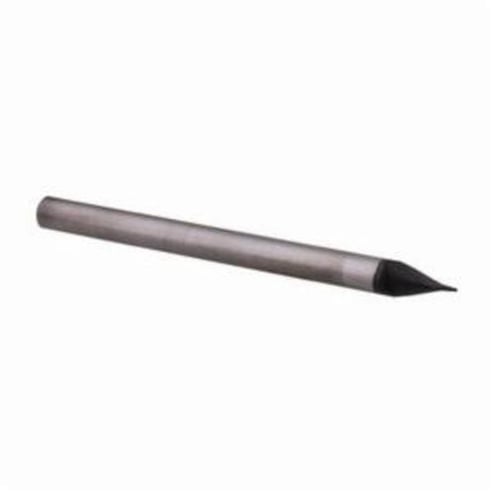

Seco JABRO® Mini 08320 JM650 Ball End Center Cutting Single End Mill, 0.011 in Dia Cutter, 0.011 in Length of Cut, 2 Flutes, 0.118 in Dia Shank, 1.574 in OAL, Diamond Coated


Description

Seco JABRO® Mini End Mill, Ball End Center Cutting Single End, Series: JM650, 0.011 in Diameter Cutter, 1.574 in Overall Length, 0.011 in Length of Cut, 2 Flutes, Spiral Flute, 0.118 in Shank Diameter, Right Hand Cutting Direction, 20 deg Helix Angle, Cylindrical Shank, ANSI Code: 650003-DIAMOND, ISO Code: 650003-DIAMOND, Solid Carbide, Diamond Coated

Micro-technology and miniaturisation are undergoing rapid developments. In order to be able to manufacture small products, Seco® has developed a wide range of miniature milling cutters, introducing the mini range. The Mini range caters for small diameters 0.1 - 2 mm, and in longer overhang lengths based on the typical dimensions up to 16 x D. They are the result of continious research into the optimum combinations of hard metal quality, milling cutter geometry and coatings in relation to the material to be machined.

Specifications

ANSI Code 650003-DIAMOND
Cutter Diameter 0.011 in
Cutting Direction Right Hand
Finish Diamond Coated
Flute Type Spiral
Helix Angle 20 deg
ISO Code 650003-DIAMOND
Length of Cut 0.011 in
Material Solid Carbide
Number of Flutes 2
Overall Length 1.574 in
Series JM650
Shank Diameter 0.118 in
Shank Type Cylindrical
Type Ball End Center Cutting Single End

Country of Origin: Netherlands

Application:
Radial Ramping Applications

Features

  • JABRO®-Mini - Micro machining technology
  • Solid carbide provides better rigidity than high speed steel, it is extremely heat resistant and used for high speed applications on cast iron, non-ferrous materials, plastics and other tough-to-machine materials
  • Diamond (CVD) coated tools are the hardest of the coatings, used exclusively for applications in non-ferrous materials such as aluminum, graphite, copper, and carbon fiber
  • 90 deg cutting edge
  • 0.005 in corner radius
  • 1.102 in L minimum clamping
  • 20 deg axial rake
  • 4 deg radial rake
  • 0.216 in L neck
  • J - Tool shape
  • 2 teeth across centre cut
