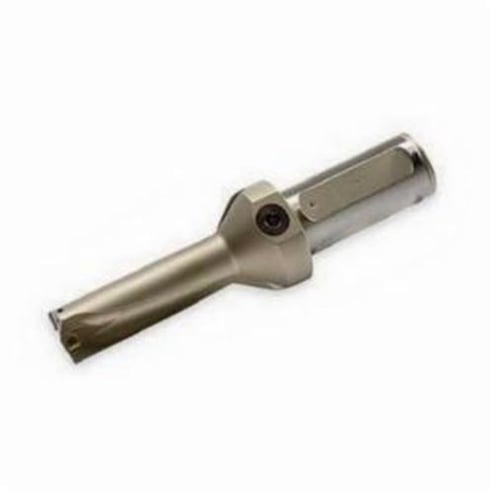

Seco 06748 Perfomax™ SD503 Indexable Insert Drill, 1-3/4 in Drill, 1.894 in Modular Connection, 1-1/2 in Dia Shank, 3XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 9.378 in OAL, 5-1/4 in D Max Drill


Description

Seco Indexable Insert Drill, Series: Perfomax™ SD503, 1-3/4 in Drill, 1-1/2 in Shank Diameter, 2-3/4 in Shank Length, ISO 9766 Shank, 1.894 in Modular Connection, SPGX/SCGX Insert, 5-1/4 in Maximum Drill Depth, 9.378 in Overall Length, 1-3/4 in Diameter, 3XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: SPGX1504-C1 Center, SCGX120408.. Peripheral, 5.447 in Flute Length, Yes Through Coolant

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 1-3/4 in
Drill Depth by Diameter Ratio 3XD
Drill Size 1-3/4 in
Flute Length 5.447 in
Insert Compatibility SPGX1504-C1 Center, SCGX120408.. Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 5-1/4 in
Modular Connection Size 1.894 in
Number of Drill Inserts 2
Overall Length 9.378 in
Series Perfomax™ SD503
Shank Diameter 1-1/2 in
Shank Length 2-3/4 in
Shank Type ISO 9766
Through Coolant (Yes/No) Yes

Country of Origin: United States

Application:
For stationary applications

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
