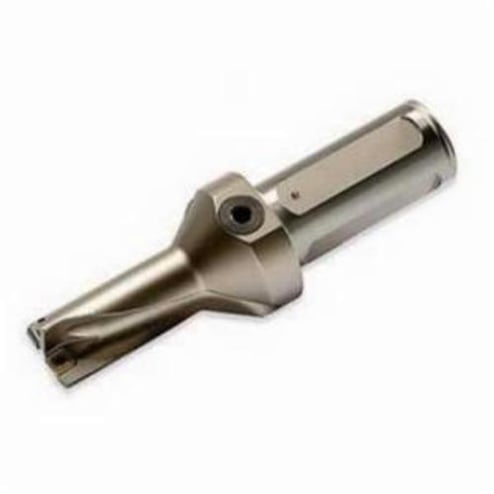

Seco 06680 Perfomax™ SD502 Indexable Insert Drill, 0.812 in Drill, 1.394 in Modular Connection, 1 in Dia Shank, 2XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 5.752 in OAL, 1.62 in D Max Drill


Description

Seco Indexable Insert Drill, Series: Perfomax™ SD502, 0.812 in Drill, 1 in Shank Dia, 2-1/4 in Shank Length, ISO 9766 Shank, 1.394 in Modular Connection Size, SPGX/SCGX Insert, 1.62 in Maximum Drill Depth, 5.752 in Overall Length, 0.812 in Dia, 2XD Drill Depth by Dia Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0602-C1 Center, SCGX060204.. Peripheral, 1.821 in Flute Length, Yes Through Coolant (Yes/No)

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 0.812 in
Drill Depth by Diameter Ratio 2XD
Drill Size 0.812 in
Flute Length 1.821 in
Insert Compatibility SPGX0602-C1 Center, SCGX060204.. Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 1.62 in
Modular Connection Size 1.394 in
Number of Drill Inserts 2
Overall Length 5.752 in
Series Perfomax™ SD502
Shank Diameter 1 in
Shank Length 2-1/4 in
Shank Type ISO 9766
Through Coolant (Yes/No) Yes

Country of Origin: United States

Application:
For stationary applications

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
