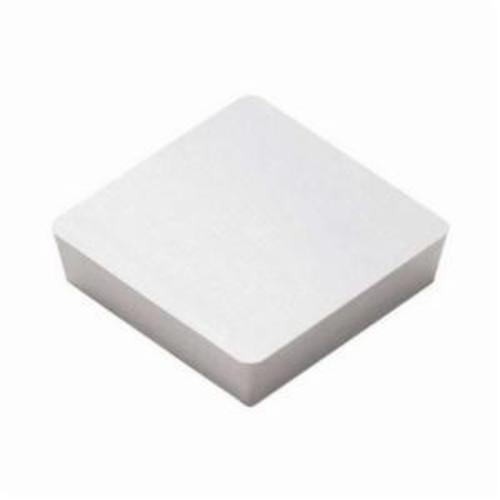

Seco 74006341 Turning Insert, ANSI Code: SPU 633 S25M, SPUN Insert, 190412 Insert, Squared Shape, 19 Seat, Neutral Cutting, Carbide, Manufacturer's Grade: S25M


Description

Seco Turning Insert, SPUN Insert, 190412 Insert, Squared, 13 mm Maximum Depth of Cut, 19 mm Inscribed Circle, 4.76 mm Thickness, 19 mm Width, 19 mm Length, 19 Seat, 1.2 mm Corner Radius, Manufacturer's Grade: S25M, ANSI Code: SPU 633 S25M, ISO Code: SPUN190412 S25M, 90 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, Uncoated

Specifications

ANSI Code SPU 633 S25M
Corner Radius 1.2 mm
Cutting Direction Neutral
Finish Uncoated
Included Angle 90 deg
Inscribed Circle 19 mm
Insert Size 190412
Insert Style SPUN
ISO Code SPUN190412 S25M
Length 19 mm
Manufacturer's Grade S25M
Material Carbide
Maximum Depth of Cut 13 mm
Relief Angle 11 deg
Seat Size 19
Shape Squared
Thickness 4.76 mm
Width 19 mm

Country of Origin: Czech Republic

Application:
For finishing, medium-rough machining and rough machining
