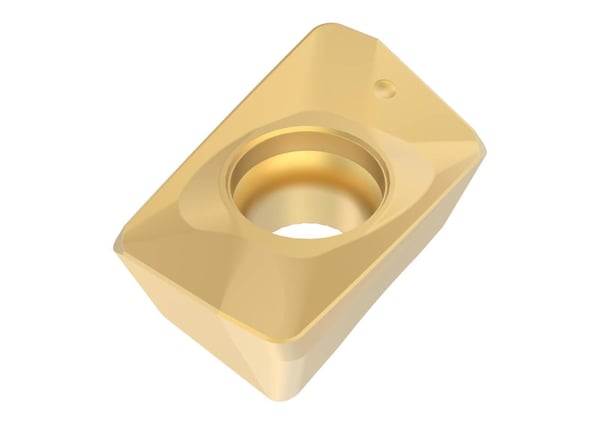

Seco 00005998 Milling Insert, ANSI Code: XOMX120416TR-M12 F40M, XOMX Insert, 120416 Insert, Carbide, Manufacturer's Grade: F40M, Parallelogram Shape, Material Grade: C5

Seco Milling Insert, XOMX Insert, 120416 Insert, Parallelogram, 4.76 mm Thickness, 8.2 mm Width, M12 Chipbreaker, 1.6 mm Corner Radius, Manufacturer's Grade: F40M, ANSI Code: XOMX120416TR-M12 F40M, Right Hand, Carbide, PVD-TiAlN+TiN Coated, Material Grade: C5, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

The Milling insert XOMX120416TR-M12 F40M features two cutting edges with a clearance angle of 15 degrees and a single-sided design. With a corner radius of 1.6 mm and a wiper edge length of 1.2 mm, it is made from carbide PVD grade suitable for medium applications with an average chip thickness of 0.12 mm. The insert rake angle is 10.4 degrees, and the cutting geometry type is M12. It is primarily designed for steel and is partially applicable to stainless steel, cast irons, non-ferrous metals, superalloys, and titanium. This insert is compatible with milling cutters, helical mills, square shoulder mills, plunge mills, and various turbo milling cutter types, including helical turbo, turbo, and plunge turbo inserts sized 12. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
