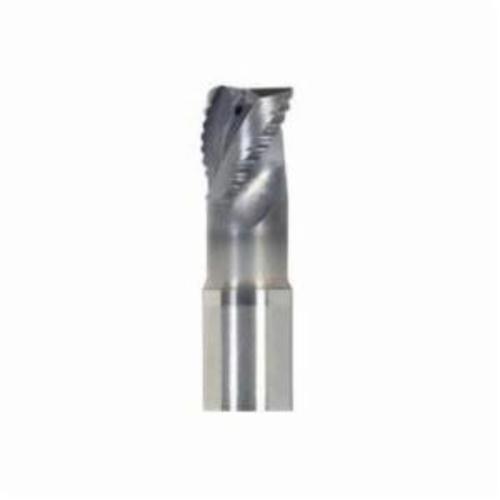

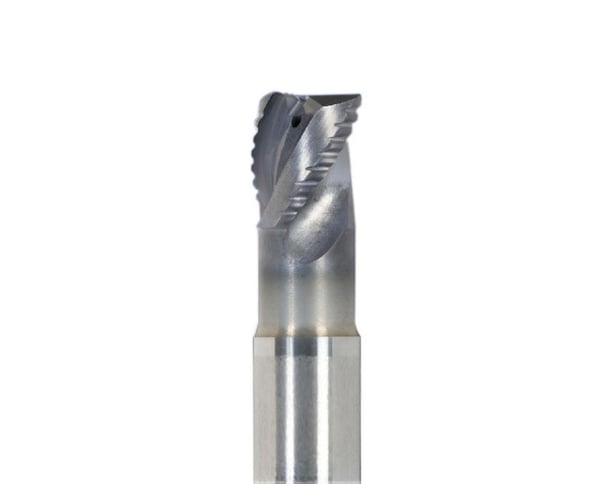

Seco JABRO® HPM 02927992 HPM JHP490 High Performance Non-Center Cutting Single End Mill, 20 mm Dia Cutter, 0.5 mm Corner Radius, 22 mm Length of Cut, 3 Flutes, 20 mm Dia Shank, 100 mm OAL, MEGA-T/PVD Coated


Description

Seco JABRO® HPM End Mill, High Performance Non-Center Cutting Single End, Series: HPM JHP490, 20 mm Diameter Cutter, 0.5 mm Corner Radius, 100 mm Overall Length, 22 mm Length of Cut, 3 Flutes, Right Spiral Flute, 20 mm Shank Diameter, Right Hand Cutting Direction, 37.5 deg Helix Angle, Safe-Lock™ Shank, ANSI Code: 490V200R050Z3.9A-MEGA-T, ISO Code: 490V200R050Z3.9A-MEGA-T, Solid Carbide, MEGA-T/PVD Coated

High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.

Specifications

ANSI Code 490V200R050Z3.9A-MEGA-T
Corner Radius 0.5 mm
Cutter Diameter 20 mm
Cutting Direction Right Hand
Finish MEGA-T/PVD Coated
Flute Type Right Spiral
Helix Angle 37.5 deg
ISO Code 490V200R050Z3.9A-MEGA-T
Length of Cut 22 mm
Material Solid Carbide
Number of Flutes 3
Overall Length 100 mm
Series HPM JHP490
Shank Diameter 20 mm
Shank Type Safe-Lock™
Type High Performance Non-Center Cutting Single End

Country of Origin: Netherlands

Application:
General Machining, Radial, Ramping, Plunging and Drilling
