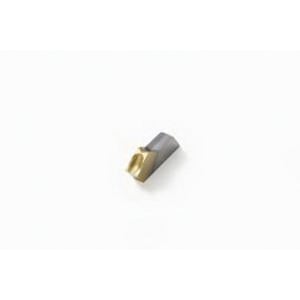

Seco 74005319 Parting-Off Insert, ANSI Code: 150.10-5N-14 T25M, 5 150.10 Insert, Material Grade: M, P, 5.1 mm W Cutting, 6 deg Lead Angle, Neutral Lead Angle Direction, Carbide, Manufacturer's Grade: T25M, CVD-TiC+TiCN+TiN Coated


Description

Seco Parting-Off Insert, 150.10 Insert, 5 Insert, 5.1 mm Cutting Width, 6 deg Lead Angle, Neutral Lead Angle Direction, 5.1 mm Width, 9 mm Length, 14 Chipbreaker, 0.3 mm Corner Radius, Manufacturer's Grade: T25M, ANSI Code: 150.10-5N-14 T25M, Neutral Hand, Carbide, CVD-TiC+TiCN+TiN Coated, Material Grade: M, P

Specifications

ANSI Code 150.10-5N-14 T25M
Chipbreaker 14
Corner Radius 0.3 mm
Cutting Width 5.1 mm
Finish CVD-TiC+TiCN+TiN Coated
Hand of Insert Neutral
Insert Size 5
Insert Style 150.10
Lead Angle 6 deg
Lead Angle Direction Neutral
Length 9 mm
Manufacturer's Grade T25M
Material Carbide
Material Grade M, P
Width 5.1 mm

Country of Origin: Sweden

Features

  • Tough versatile CVD-coated grade intended for parting off of steel, stainless steel and cast iron at moderate cutting speeds
