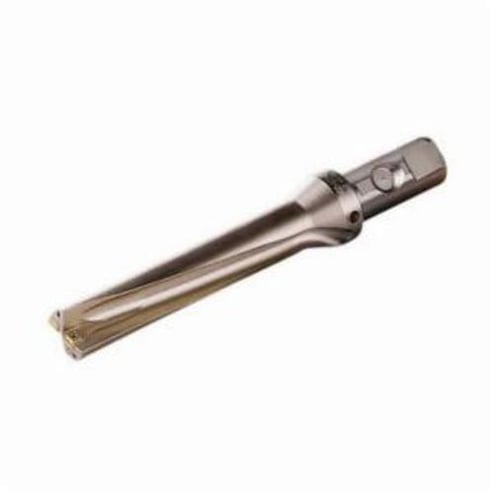

Seco 05268 Perfomax™ SD505 Indexable Insert Drill, 23 mm Drill, 35 mm Modular Connection, 25 mm Dia Shank, 5XD Drill Depth by Dia Ratio, SPGX/SCGX Insert, 201 mm OAL, 115 mm D Max Drill


Description

Seco Indexable Insert Drill, Series: Perfomax™ SD505, 23 mm Drill, 25 mm Shank Diameter, 56 mm Shank Length, Weldon Flat/Whistle Notch Shank, 35 mm Modular Connection, SPGX/SCGX Insert, 115 mm Maximum Drill Depth, 201 mm Overall Length, 23 mm Diameter, 5XD Drill Depth by Diameter Ratio, 2 Drill Inserts, Insert Compatibility: SPGX0703-C1 Center, SCGX070308.. Peripheral, 120 mm Flute Length, Yes Through Coolant

Perfomax™ is a long standing, proven range of indexable insert drills that offers an economical solution when it comes to productively drilling holes. Reliable and trustworthy, the strong, square inserts each offer four cutting edges. They can be used with most modern insert grades and coatings. The drill body design features a unique chip flute design, through coolant holes on all sizes and a low friction coating to optimize chip evacuation. The Perfomax™ drill body design is strong and sturdy, capable of handling the highest productivity and offers strong performance in unstable applications.

Specifications

Diameter 23 mm
Drill Depth by Diameter Ratio 5XD
Drill Size 23 mm
Flute Length 120 mm
Insert Compatibility SPGX0703-C1 Center, SCGX070308.. Peripheral
Insert Style SPGX/SCGX
Maximum Drill Depth 115 mm
Modular Connection Size 35 mm
Number of Drill Inserts 2
Overall Length 201 mm
Series Perfomax™ SD505
Shank Diameter 25 mm
Shank Length 56 mm
Shank Type Weldon Flat/Whistle Notch
Through Coolant (Yes/No) Yes

Country of Origin: Sweden

Features

  • Effective chip control for long chipping ductile materials
  • Fast and efficient chip evacuation
  • Higher cutting parameters for increased drilling output
  • Longer tool life gives reduced tool cost
  • Exceptional process predictability and reliability
  • Better hole tolerance
