Seco 02426063 Turning Insert, ANSI Code: RCMT32.5-F1 CP500, RCMT Insert, Material Grade: M, 09T300 Insert, Round Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

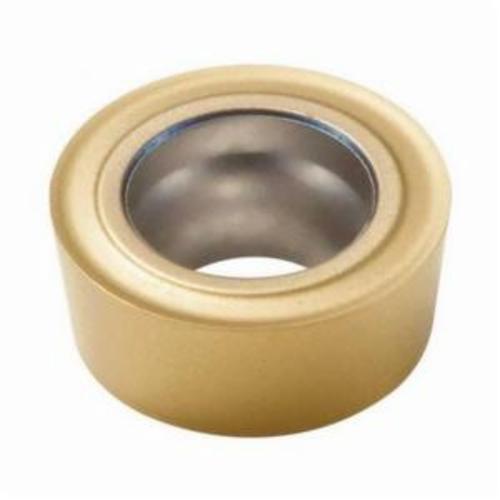

Seco Turning Insert, RCMT Insert, 09T300 Insert, Round, 9 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, F1 Chipbreaker, 3.9 mm Hole Dia, Manufacturer's Grade: CP500, ANSI Code: RCMT32.5-F1 CP500, ISO Code: RCMT09T300-F1 CP500, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

Specifications

ANSI Code RCMT32.5-F1 CP500
Chipbreaker F1
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 3.9 mm
Inscribed Circle 9 mm
Insert Size 09T300
Insert Style RCMT
ISO Code RCMT09T300-F1 CP500
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Rake Positive
Relief Angle 7 deg
Seat Size 09
Shape Round
Thickness 3.97 mm

Country of Origin: Sweden

Application:
Finishing Applications
