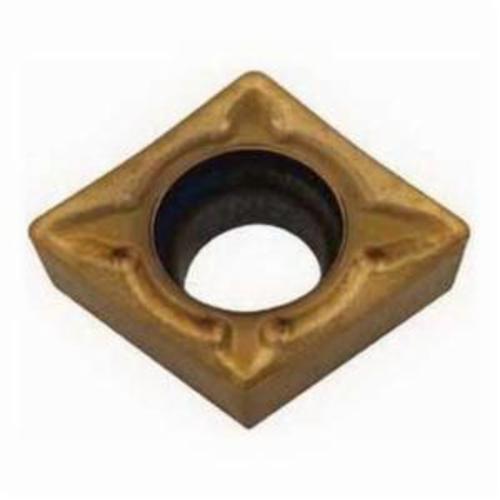

Seco 02426020 Turning Insert, ANSI Code: CPMT21.51-F1 CP500, CPMT Insert, Material Grade: M, 060204 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

Seco Turning Insert, CPMT Insert, 060204 Insert, Diamond, 2.5 mm Maximum Depth of Cut, 6.35 mm Inscribed Circle, 2.38 mm Thickness, 06 Seat, Positive Rake, F1 Chipbreaker, 0.4 mm Corner Radius, 2.9 mm Hole Dia, Manufacturer's Grade: CP500, ANSI Code: CPMT21.51-F1 CP500, ISO Code: CPMT060204-F1 CP500, 80 deg Included Angle, 11 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

The Turning insert CPMT060204-F1 CP500 features a positive type geometry with a clearance angle major of 11 degrees. It is made from a carbide PVD grade CP500. The insert has two cutting edges, a corner radius of 0.4 mm, and a cutting edge effective length of 5.6 mm. The insert hand is neutral. It is primarily designed for steel and stainless steel workpiece materials and is partially applicable for cast irons, non-ferrous metals, superalloys and titanium, as well as hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code CPMT21.51-F1 CP500
Chipbreaker F1
Corner Radius 0.4 mm
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 2.9 mm
Included Angle 80 deg
Inscribed Circle 6.35 mm
Insert Size 060204
Insert Style CPMT
ISO Code CPMT060204-F1 CP500
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Maximum Depth of Cut 2.5 mm
Rake Positive
Relief Angle 11 deg
Seat Size 06
Shape Diamond
Thickness 2.38 mm

Country of Origin: Sweden

Application:
Finishing Applications
