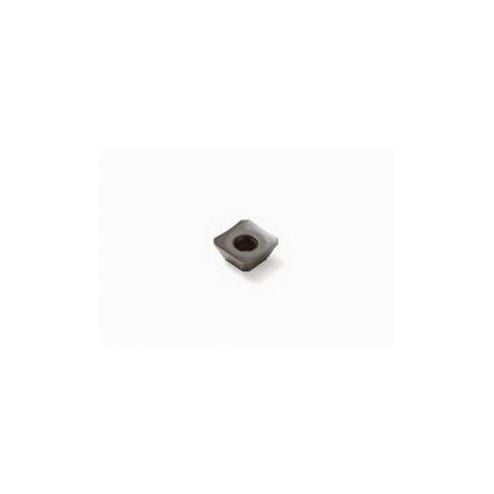

Seco 00040073 Milling Insert, ANSI Code: SEEX09T3AFTN-ME07 T350M, SEEX Insert, 09T3 Insert, Carbide, Manufacturer's Grade: T350M, Squared Shape, Material Grade: C5


Description

Seco Milling Insert, SEEX Insert, 09T3 Insert, Squared, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 9.5 mm Width, 9.5 mm Length, ME07 Chipbreaker, Manufacturer's Grade: T350M, ANSI Code: SEEX09T3AFTN-ME07 T350M, Ambidextrous Hand, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: C5, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

Specifications

ANSI Code SEEX09T3AFTN-ME07 T350M
Chipbreaker ME07
Finish CVD-TiCN+Al2O3 Coated
Hand of Insert Ambidextrous
Inscribed Circle 9.5 mm
Insert Size 09T3
Insert Style SEEX
Length 9.5 mm
Manufacturer's Grade T350M
Material Carbide
Material Application Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Material Grade C5
Shape Squared
Thickness 3.97 mm
Width 9.5 mm

Country of Origin: Czech Republic
