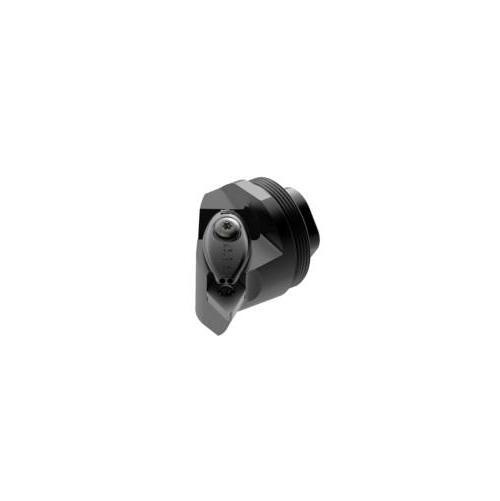

Seco 02994358 DDUNR Turning & Profiling Cutting Unit Head, GL50 System, 1.26 in L Head/Projection, Right Hand Cutting, 1.85 in OAL, Internal


Description

Seco, 02994358, Turning & Profiling Cutting Unit Head, Series: DDUNR, System Size: GL50, 1.26 in Head Length/Projection, 1.85 in Overall Length, DN.. 1506.. Insert, Right Hand Cutting Direction, 1.248 in Center to Cutting Edge, Lever Insert Holding Method, Internal

The Turning ISO holder GL50-DDUNR-32032-15JET features an internal version designed for right-hand cutting with a tool cutting edge angle of 93 degrees. With a functional length of 32 mm, it supports machine workpiece connections from GL50 to DN..1504-DN..1506*. The holder is compatible with coolant pressure up to 200 bar and utilizes Jetstream Tooling [R] for coolant delivery. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Center to Cutting Edge 1.248 in
Cutting Direction Right Hand
Head Length/Projection 1.26 in
Insert Holding Method Lever
Insert Style DN.. 1506..
Internal or External Internal
Overall Length 1.85 in
Series DDUNR
System Size GL50

Country of Origin: India

Features

  • Deliver coolant effectively through the toolholder to the optimum position close to the cutting edge, this improves chip control by lifting the chip away from the rake face and reducing the heat load, enabling longer tool life and drastically increasing cutting data to be applied
