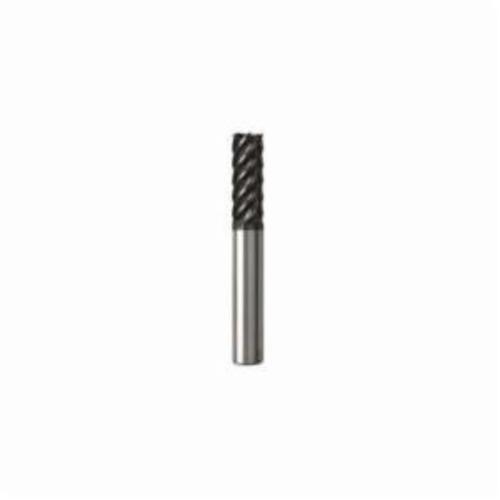

Seco JABRO® Solid2 02927499 Solid2 JS520 High Performance Non-Center Cutting Single End Universal End Mill, 4 mm Dia Cutter, 0.04 mm Corner Radius, 10 mm Length of Cut, 5 Flutes, 6 mm Dia Shank, 57 mm OAL, NXT/PVD Coated


Description

Seco JABRO® Solid2 End Mill, High Performance Non-Center Cutting Single End Universal, Series: Solid2 JS520, 4 mm Diameter Cutter, 0.04 mm Corner Radius, 57 mm Overall Length, 10 mm Length of Cut, 5 Flutes, Right Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 45 deg Helix Angle, Weldon Flat Shank, ANSI Code: JS520040F2C.3Z5-NXT, ISO Code: JS520040F2C.3Z5-NXT, Solid Carbide, NXT/PVD Coated

Seco new generation of JABRO® Solid2 solid end mills represents over 800 universal products that apply to all commonly machined materials, from steel to titanium alloys. These highly versatile products offer an estimated 30% increase in tool life and 20% higher speeds and are designed to be applied in a wider range of applications compared to the previous generation. These productivity gains stem from optimized geometries and special edge preparations along with a new NXT coating technology.

Specifications

ANSI Code JS520040F2C.3Z5-NXT
Corner Radius 0.04 mm
Cutter Diameter 4 mm
Cutting Direction Right Hand
Finish NXT/PVD Coated
Flute Type Right Spiral
Helix Angle 45 deg
ISO Code JS520040F2C.3Z5-NXT
Length of Cut 10 mm
Material Solid Carbide
Number of Flutes 5
Overall Length 57 mm
Series Solid2 JS520
Shank Diameter 6 mm
Shank Type Weldon Flat
Type High Performance Non-Center Cutting Single End Universal

Country of Origin: Netherlands

Application:
General Machining, Radial and Ramping
