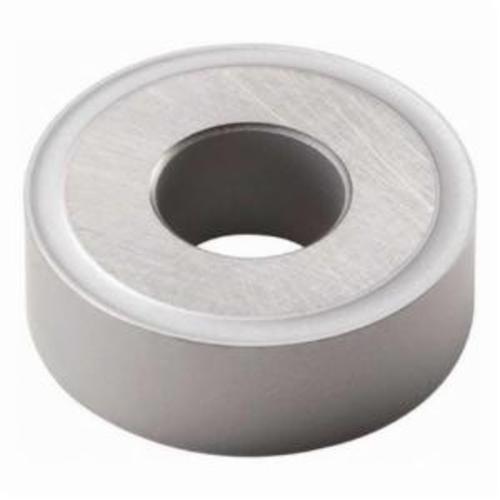

Seco 74070273 Turning Insert, ANSI Code: RNMG43-MR4 883, RNMG Insert, Material Grade: S, 120400 Insert, Round Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Super Alloys and Titanium, Carbide, Manufacturer's Grade: 883


Description

Seco Turning Insert, RNMG Insert, 120400 Insert, Round, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Negative Rake, MR4 Chipbreaker, 5.15 mm Hole Dia, Manufacturer's Grade: 883, ANSI Code: RNMG43-MR4 883, ISO Code: RNMG120400-MR4 883, 0 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: S, For Use On: Super Alloys and Titanium

Specifications

ANSI Code RNMG43-MR4 883
Chipbreaker MR4
Cutting Direction Neutral
Finish Uncoated
For Use On Super Alloys and Titanium
Hole Diameter 5.15 mm
Inscribed Circle 12.7 mm
Insert Size 120400
Insert Style RNMG
ISO Code RNMG120400-MR4 883
Manufacturer's Grade 883
Material Carbide
Material Grade S
Maximum Depth of Cut 5 mm
Rake Negative
Relief Angle 0 deg
Seat Size 12
Shape Round
Thickness 4.76 mm

Country of Origin: Czech Republic

Application:
Medium and Roughing
